37w 3.4 Ton Road Construction Machinery Hydraulic Backhoe Loader

Brand Name : WZ

Model Number : WZ10-20

Certification : ISO/CCC

Place of Origin : China

MOQ : 1 piece

Price : Negotiation

Payment Terms : L/C, T/T

Supply Ability : 500 pieces per month

Delivery Time : 30-45 work days

Packaging Details : Nude

Model : WZ10-20

Machine Weight : 3400kg

Condition : New

Dimension(Long * Breadth * High) : 5500*1720*2650

Power(W) : 37w

Color : Optional

Contact Now

WZ10-20 Backhoe Loader Road Construction Machinery With 3.4 Tons Weight

Product information

Weichai four-cylinder supercharged engine is featured in high fuel efficiency, low emission and large power margin. It is equipped with the driving & steering front axle, maintenance-free wet-type unilateral braking rear axle and four-speed synchronous shift gearbox designed and manufactured specially by CARRARO; its forward and backward directions are switched by electric hydraulic control. The loader working device is an eight-bar automatic leveling mechanism. The bucket is leveled automatically while hoisting, in order to avoid scattering and ensure stable working. The excavator working device can rotate 180 degrees along the gyration center at the back of the frame. The A-shaped stabilizer and the center-positioned excavating device are strong in working stability. Its chassis is an integral type special chassis featured in strong rigidity, impact resistance and compact size. Its cab has a board view and is configured with rail-mounted upturning glass window.

Specification

Dimensions (mm)	550017202650
Operating Weight	3400 kg
Rated Load	1500 kg
Rated Power	40 kw (55 hp)
Backhoe Capacity	0.1 m³
Loader Capacity	0.75 m³
Backhoe Max. Digging Depth	2000 mm
Backhoe Max. Digging Height	3300 mm
Backhoe Max. Digging Radius	2900 mm
Backhoe Max. Dumping Height	1850 mm
Loader Max. Dumping Height	2800 mm
Loader Max. Dumping Distance	800 mm
Backhoe Max. Breakout Force	25 kn (2550 kg)
Loader Max. Breakout Force	36 kn (3672 kg)
Travel Speed	0 - 26 km/h
Gradeability	30°
Min. Turning Radius	3500 mm
Working Pressure	16 MPa
Wheel Tread	1630 mm
Wheel Base	2670 mm
Tire Model	20.5 - 16
Tire Pressure	250 KPa
Transmission Type	Hydraulic

FAQ:

1.Q: How to get an accurate quotation?
A:To get a quotation list, please send inquiry or send email to us directly. The email addresses are shown in the contact detail page. As we have different models and different implements, please indicate following details in your inquiry email.
1) Output (how many HP) or Model No.
2 ) Cooling system (water cooling system / radiator)
3) Starting method (hand crank / electric (motor ) start)
4) Order quantity: sample order or container order
These are very important for providing you an accurate and favorable price.
2. Q: What’s your payment item ?
A: T/T, L/C.
3. Q:About the shipment
A:Usually if you didn't indicate the shipping requirement in the inquiry email, we will quote on FOB price which doesn't include shipping cost.
If you need us ship the machine to your country, please also tell us the destination port.
4. Q:What’s your delivery time ?
A: Within 20 days after receiving the deposit.
5. Q:Do you have export experience?
A: Yes, more than 10 years.
We have exported to 80 countries.

Photos

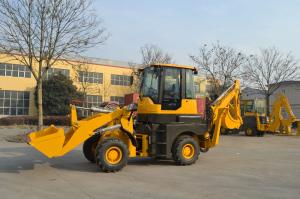

37w 3.4 Ton Road Construction Machinery Hydraulic Backhoe Loader
